Bespoke miniatures

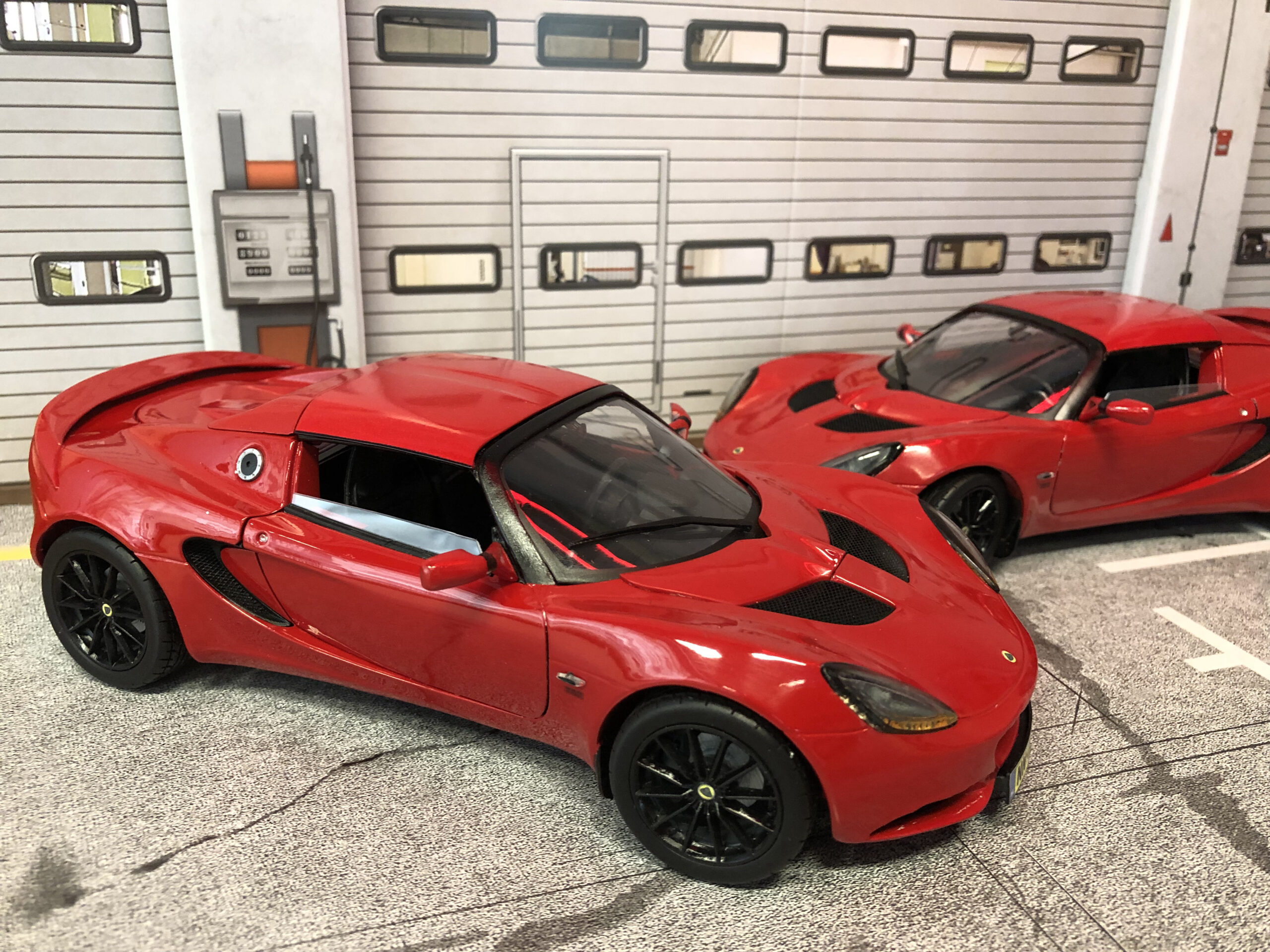

If only you could print your own detailed scale model of your car, right configuration and all? Well, modern times enable this – to some extent. 3D printing tech has landed as a consumer product. Combined with proper knowledge of 3D modelling it has become possible.

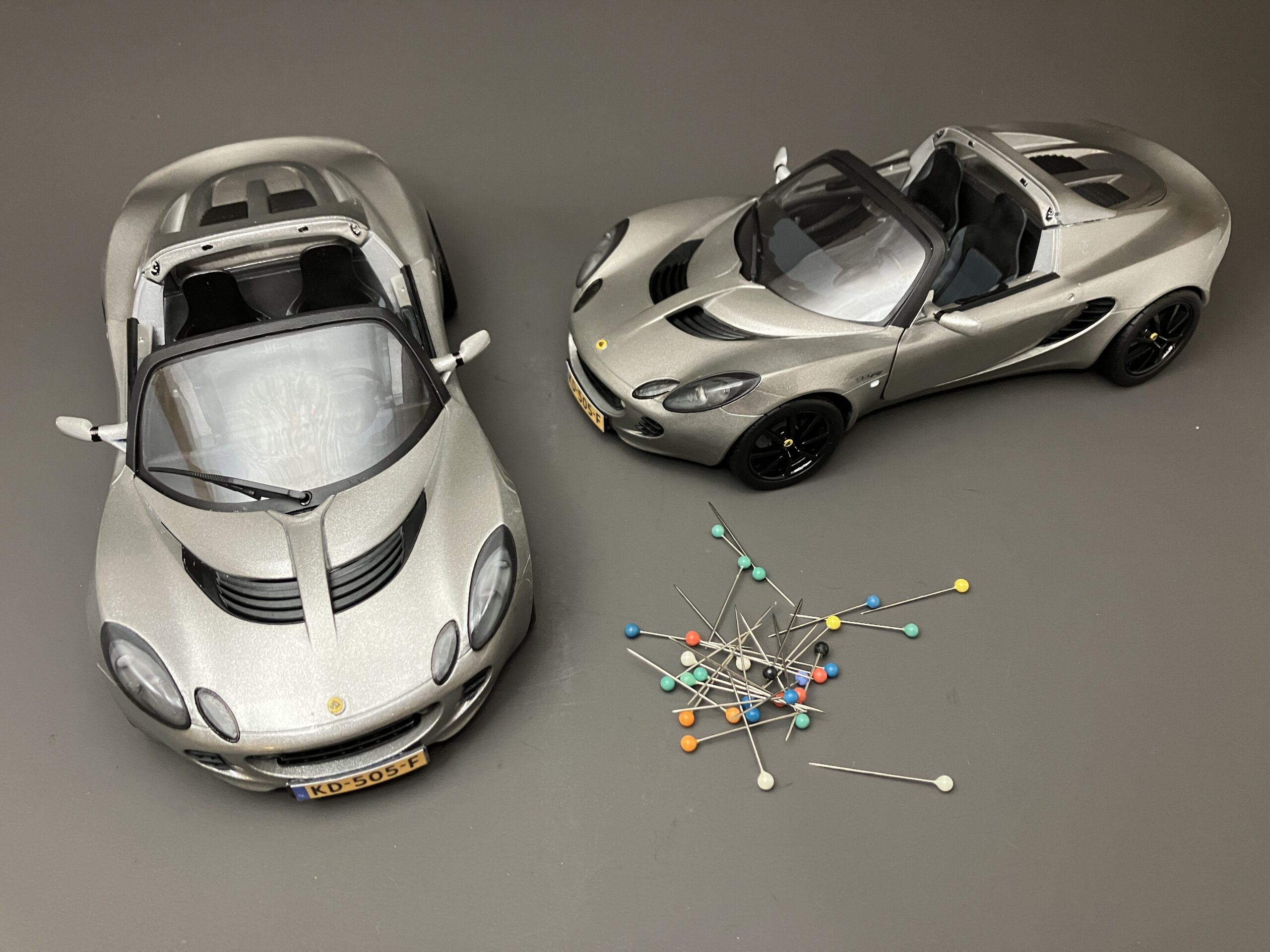

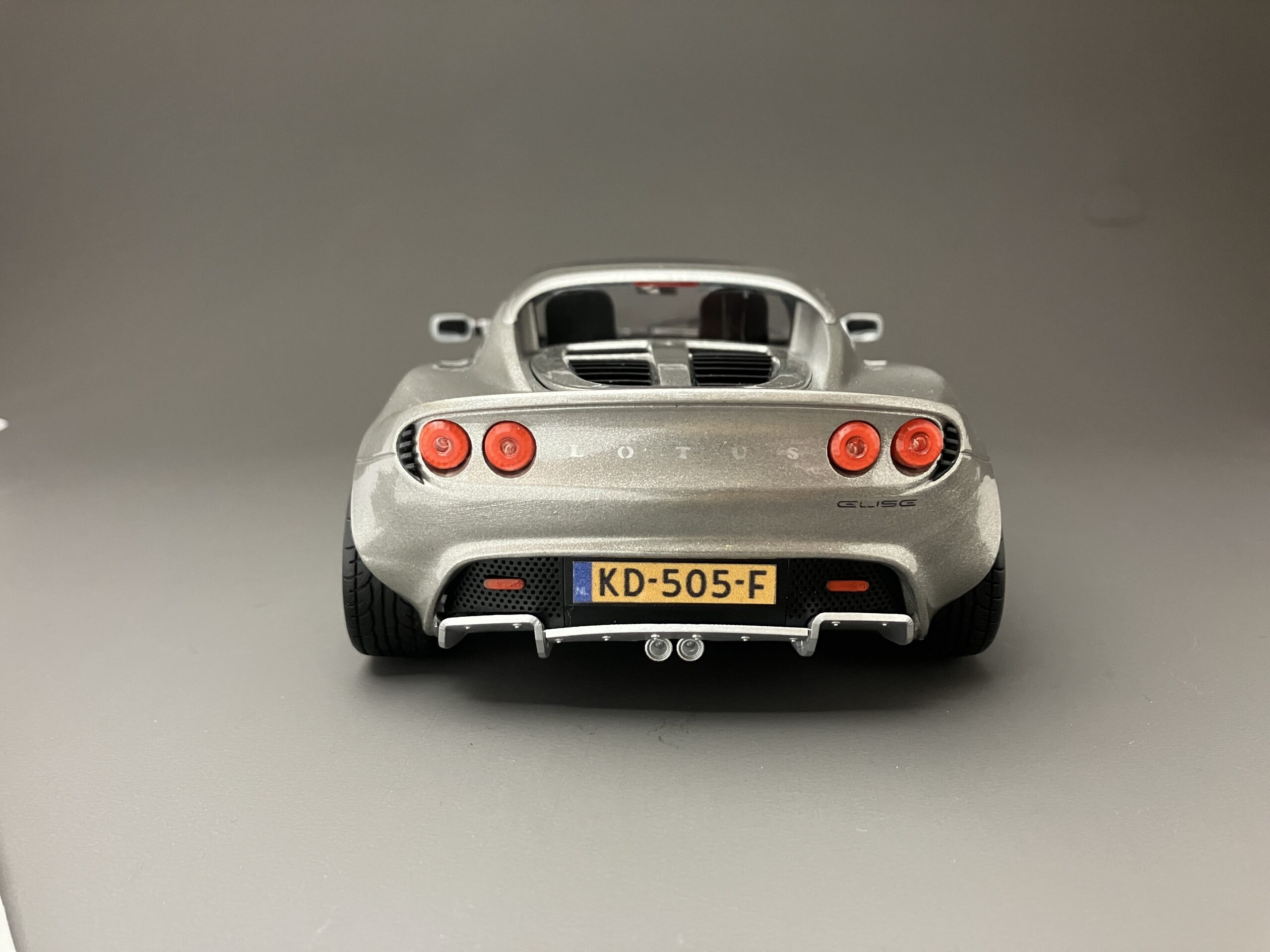

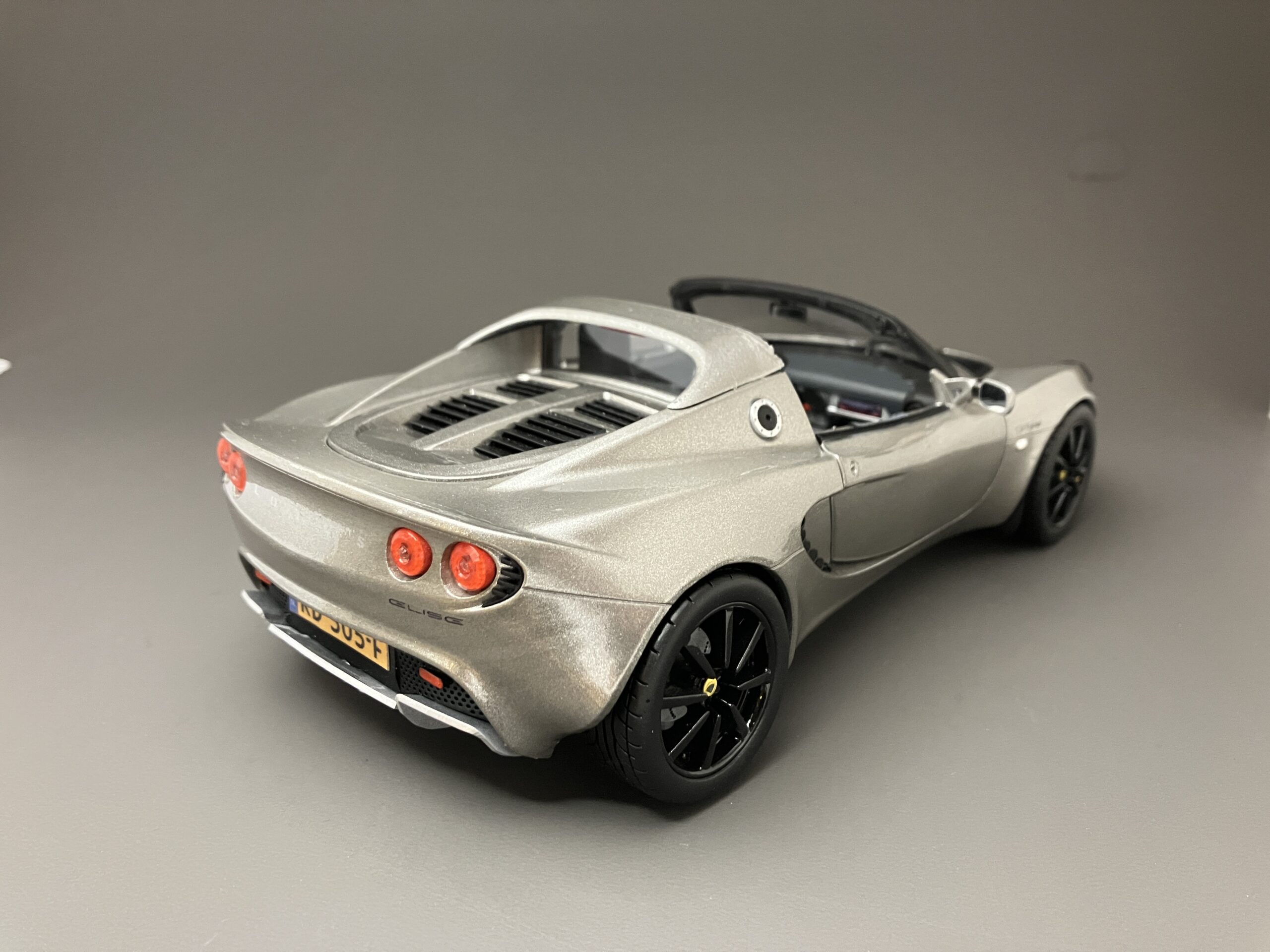

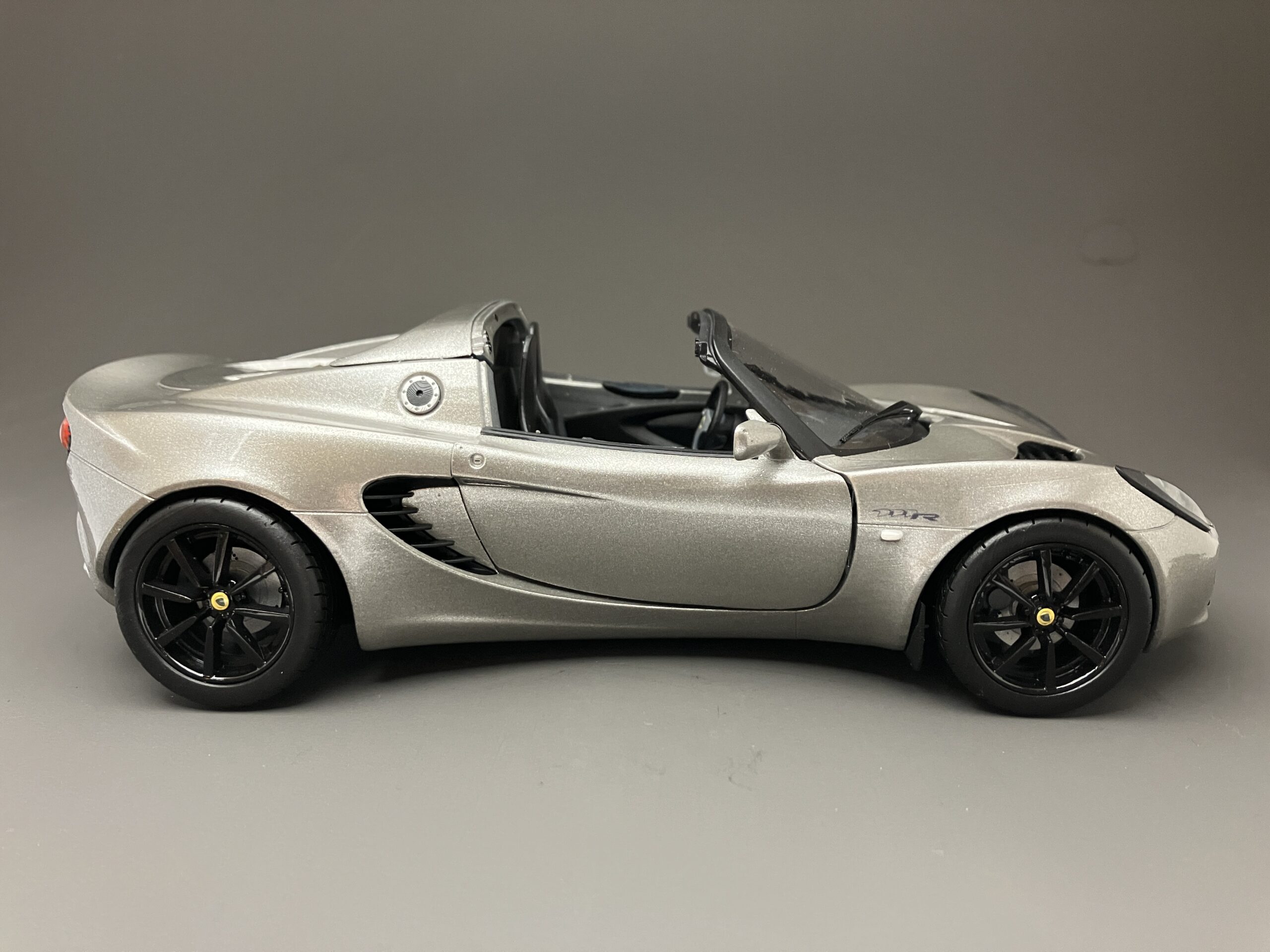

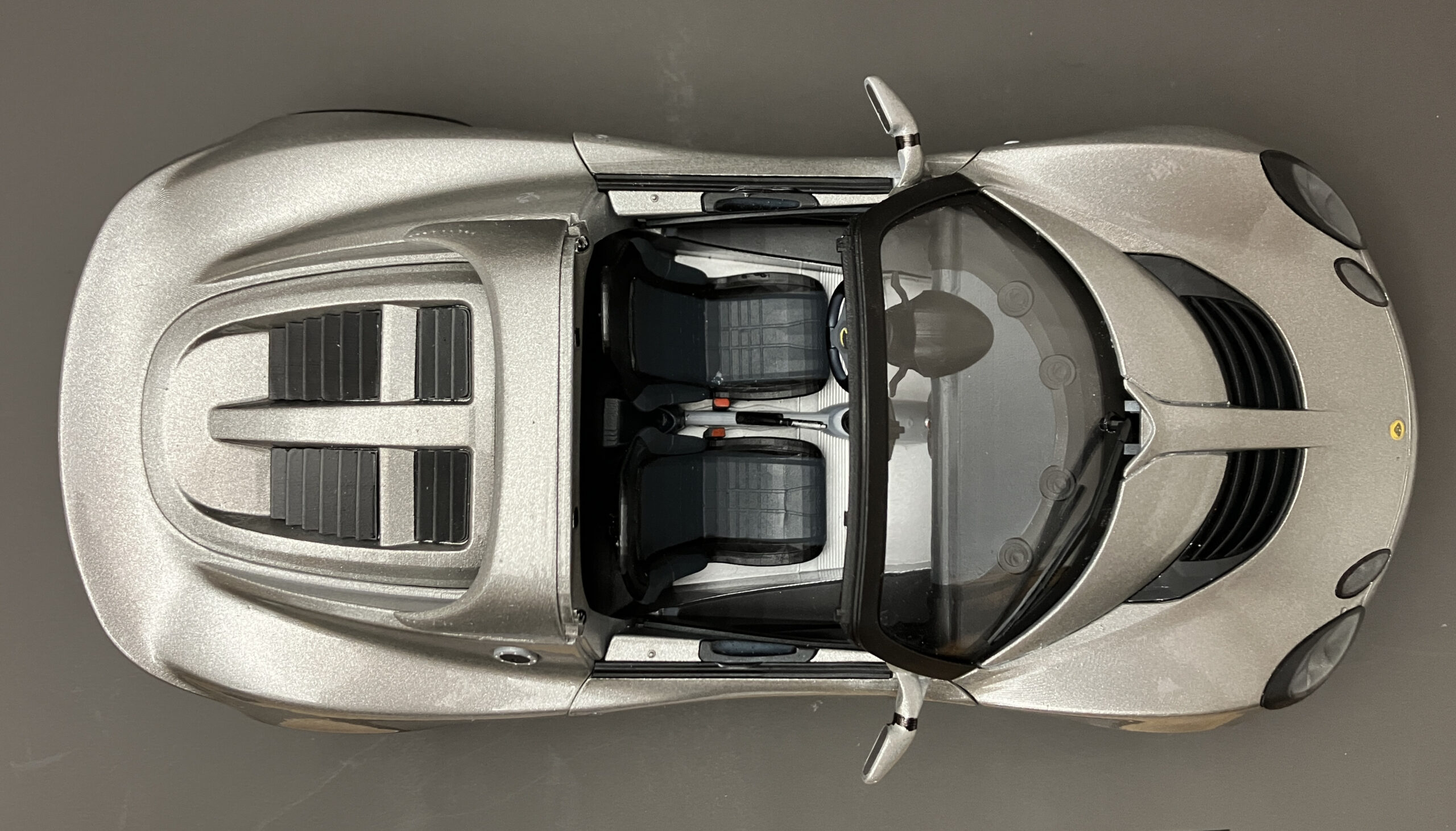

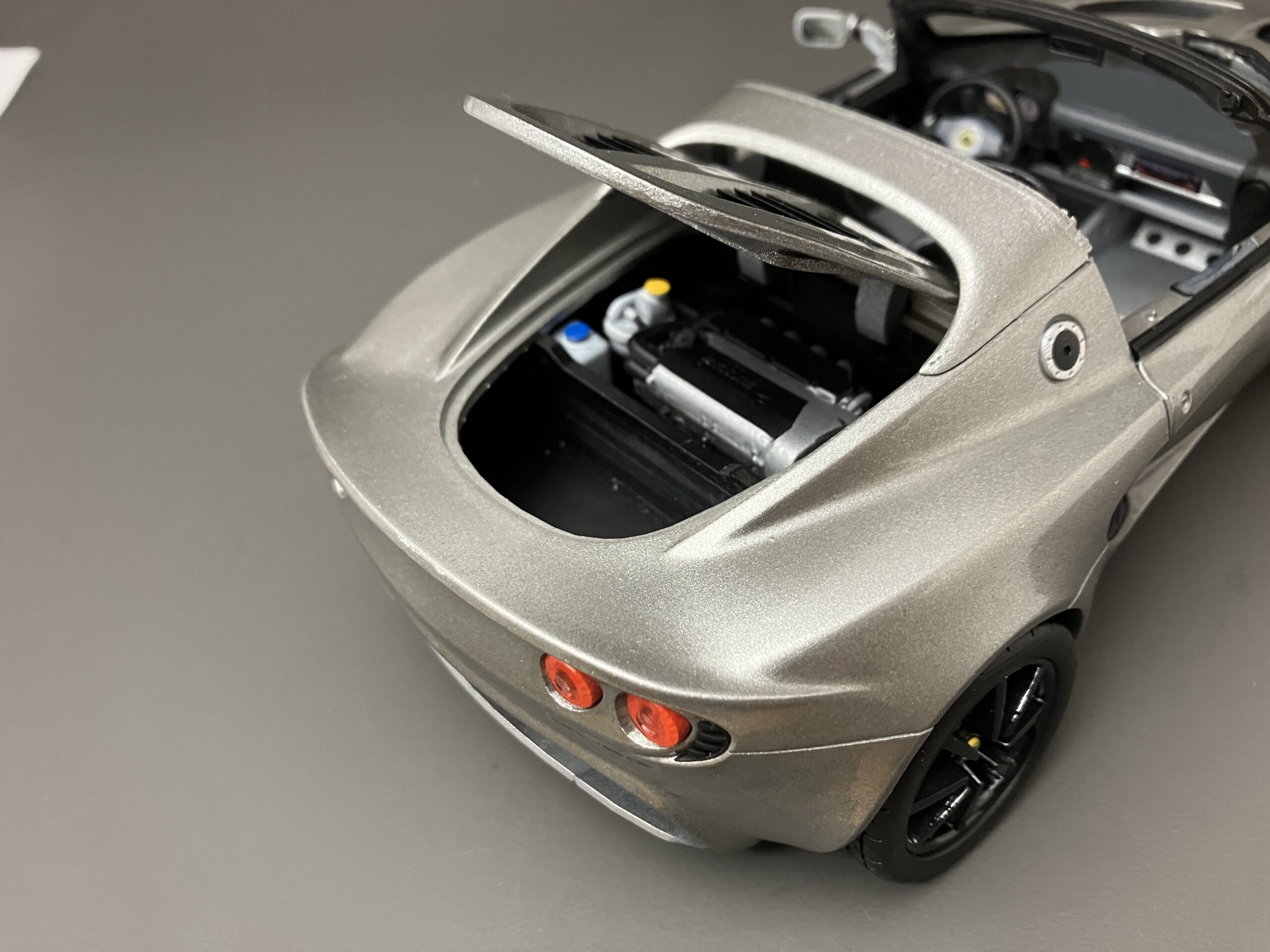

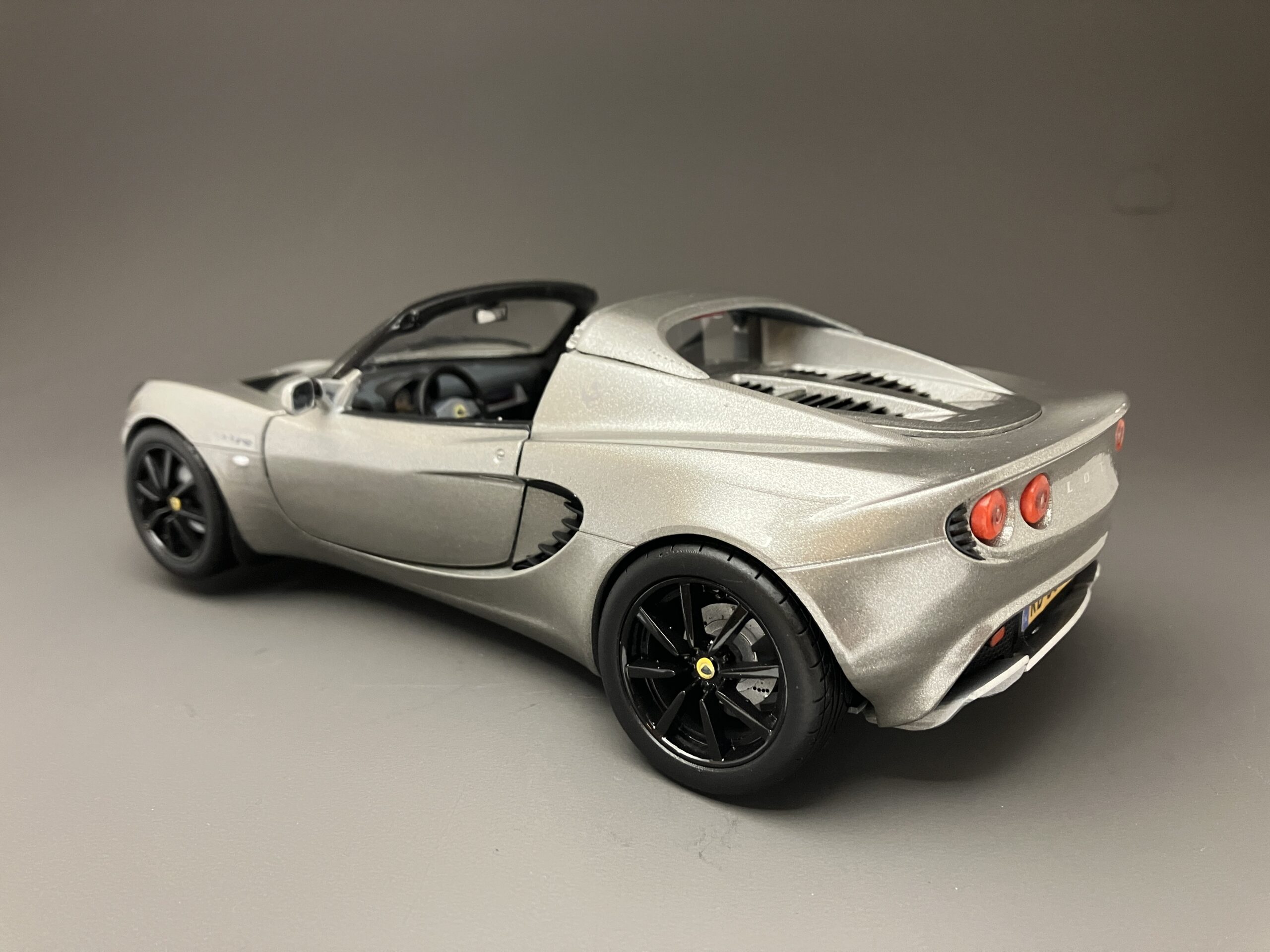

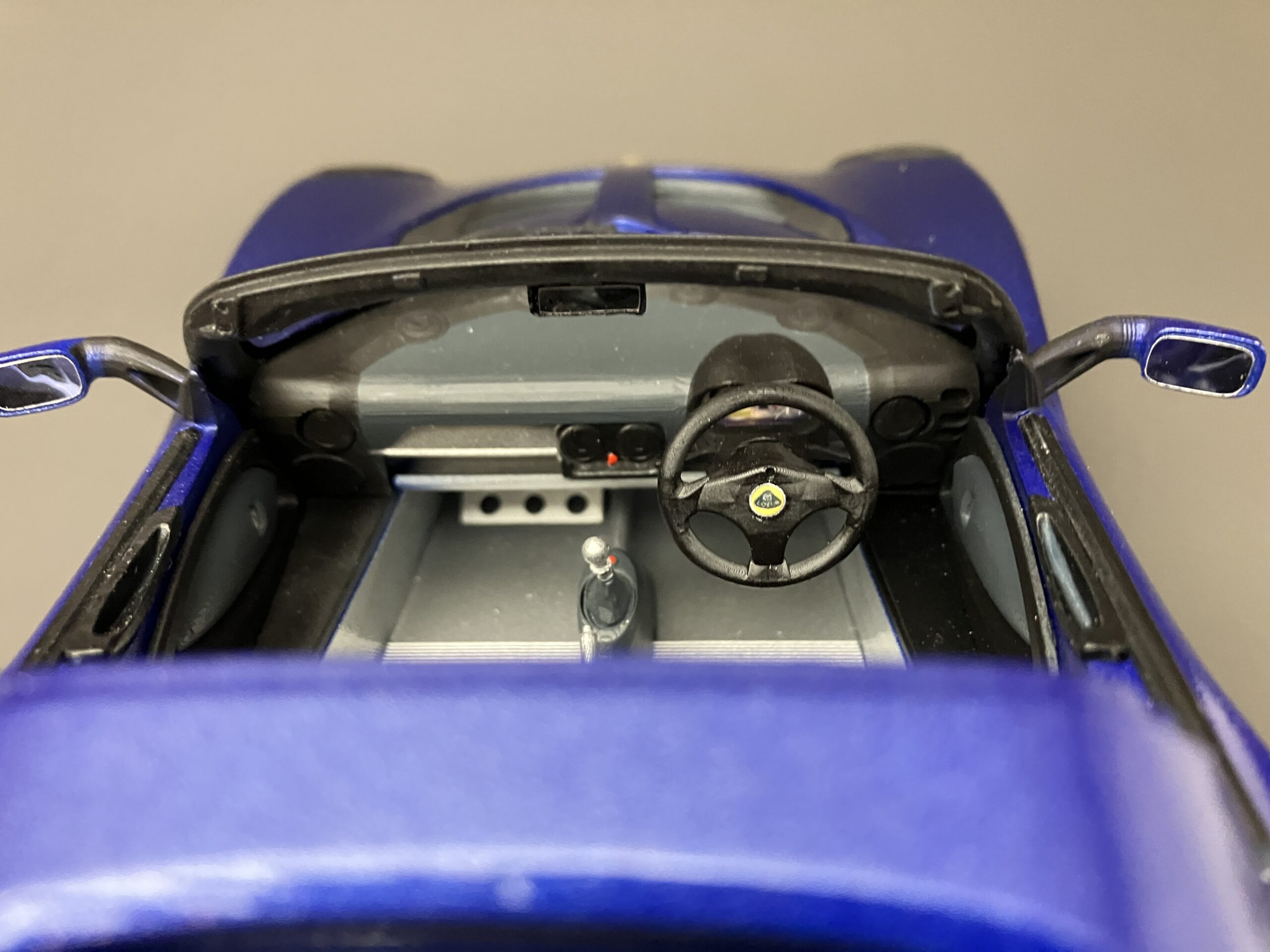

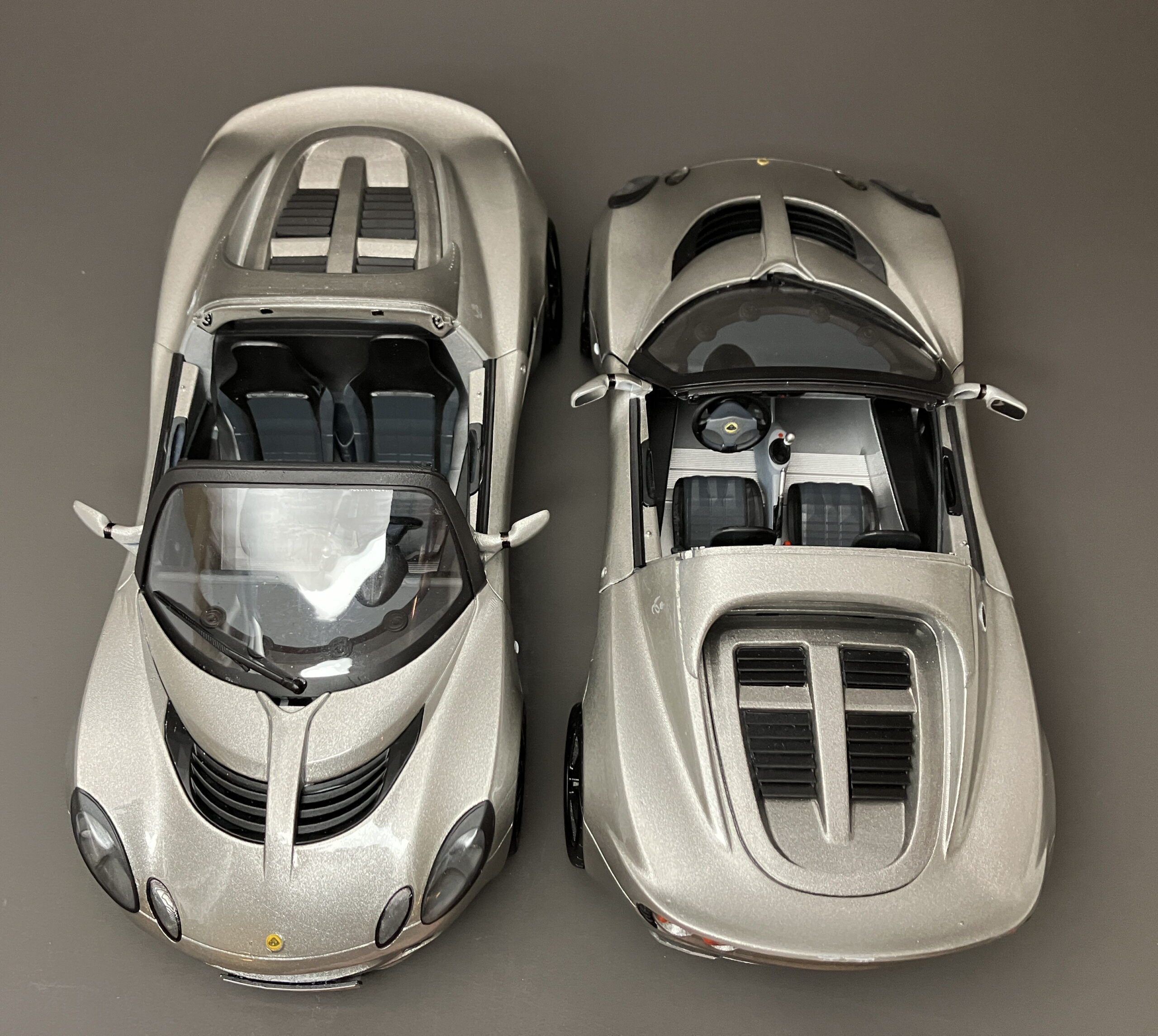

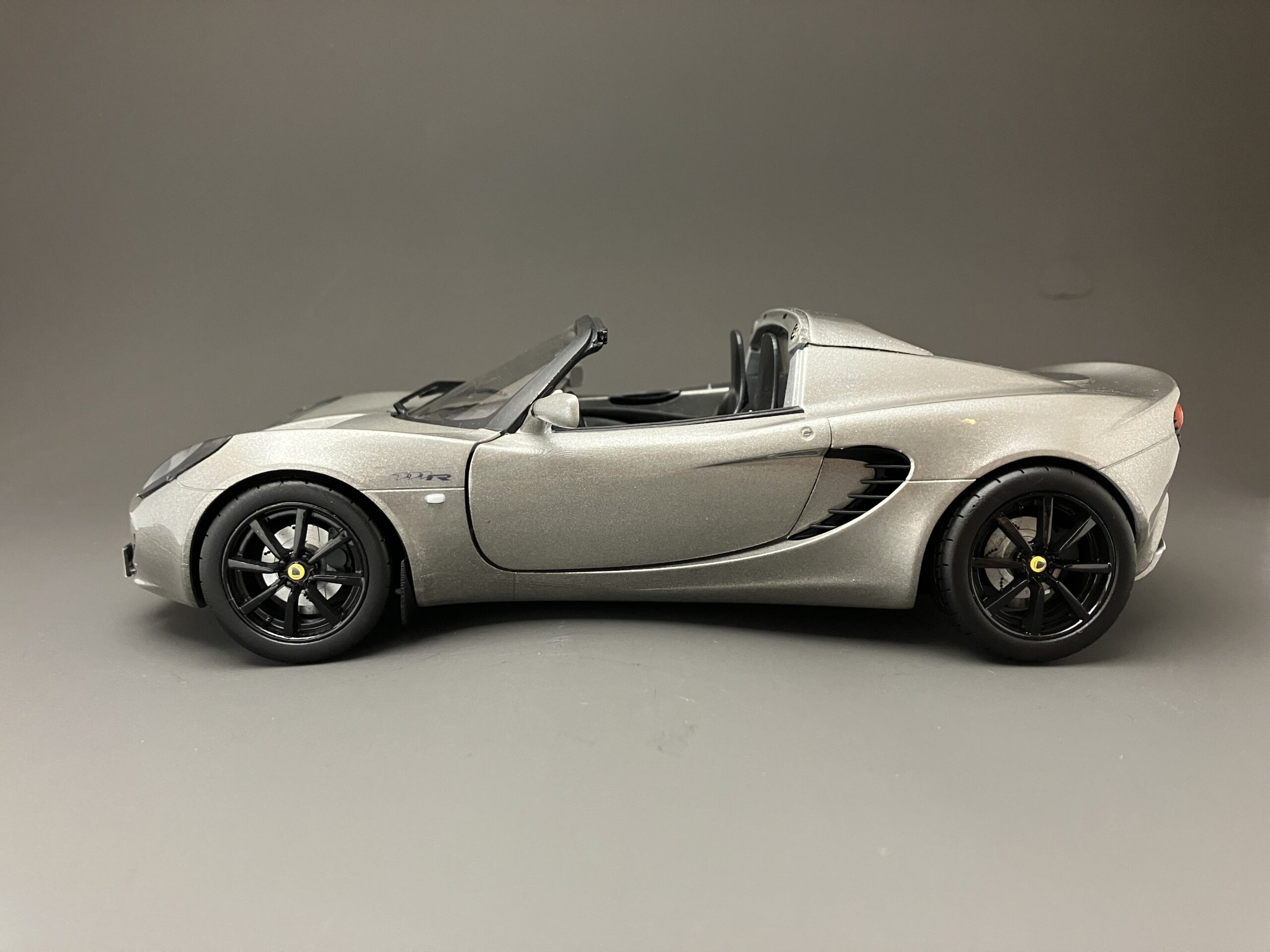

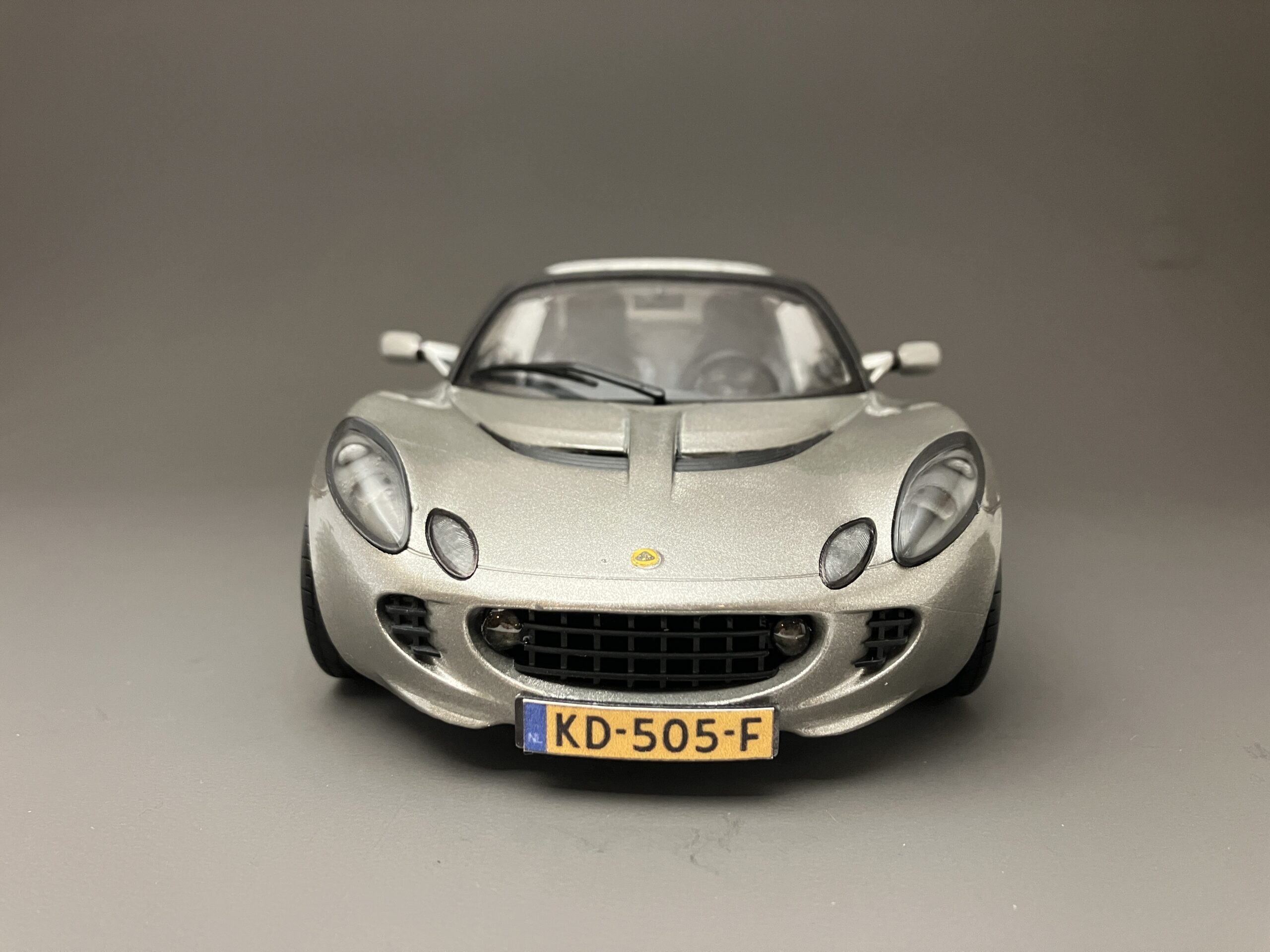

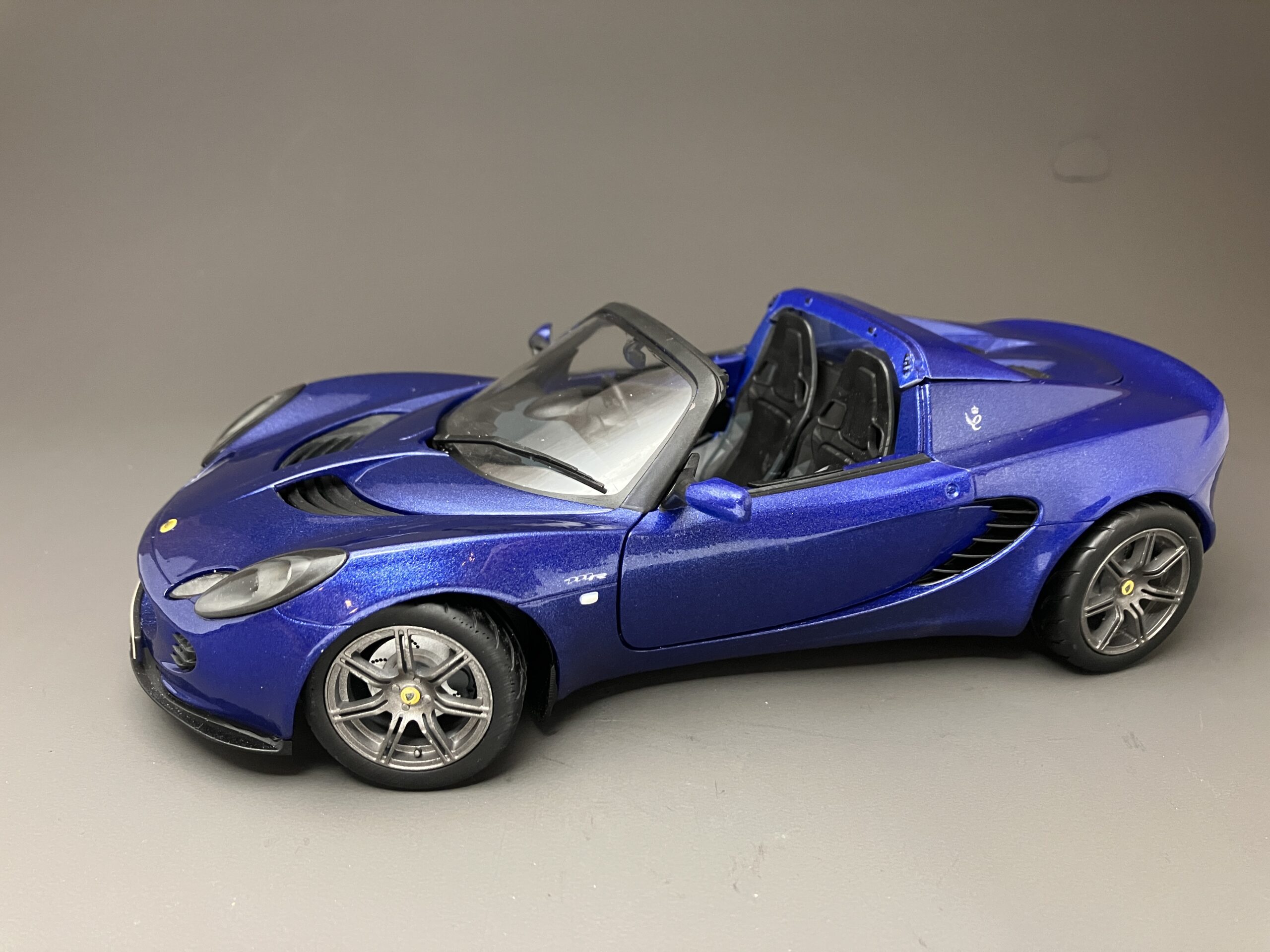

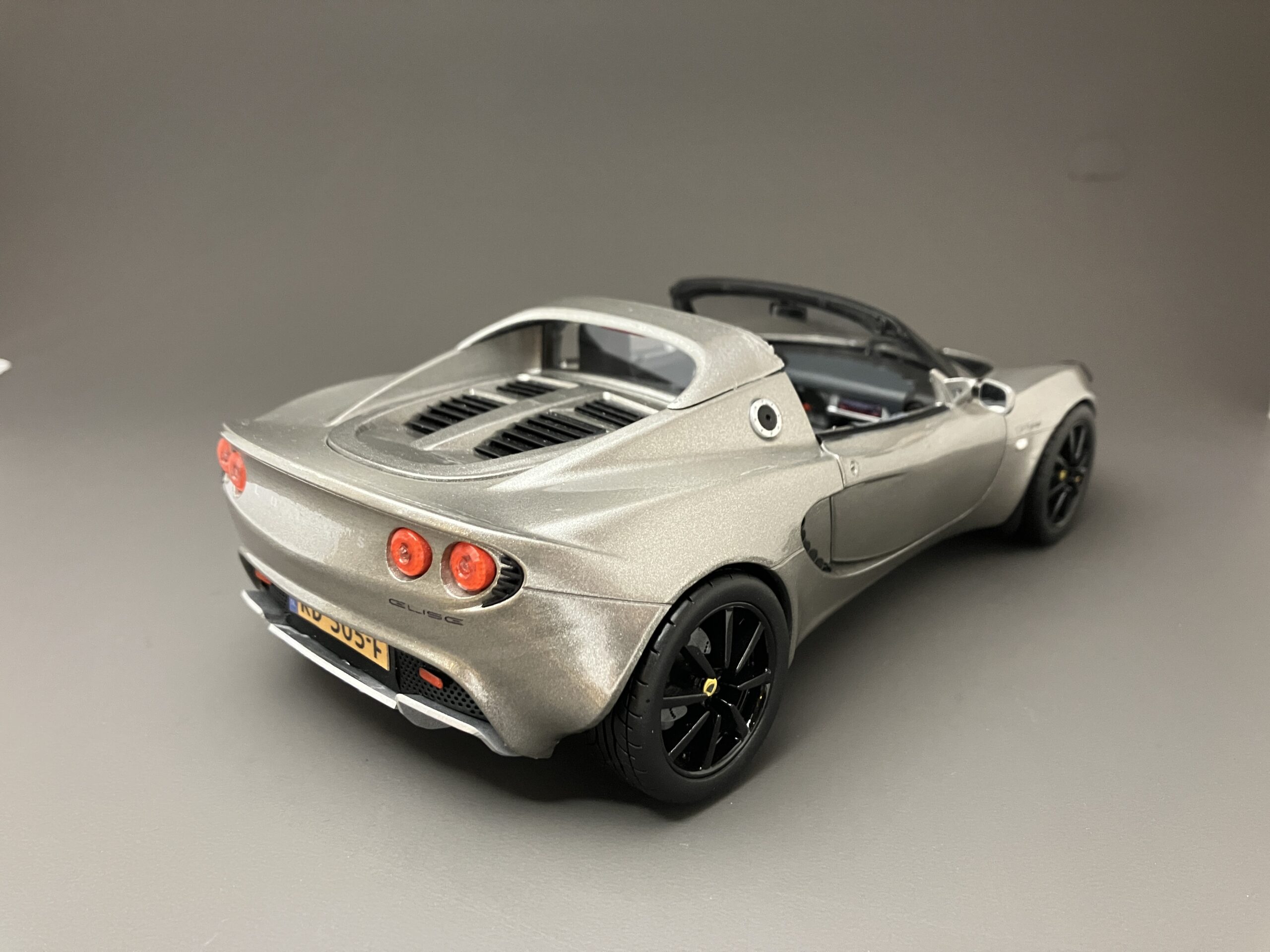

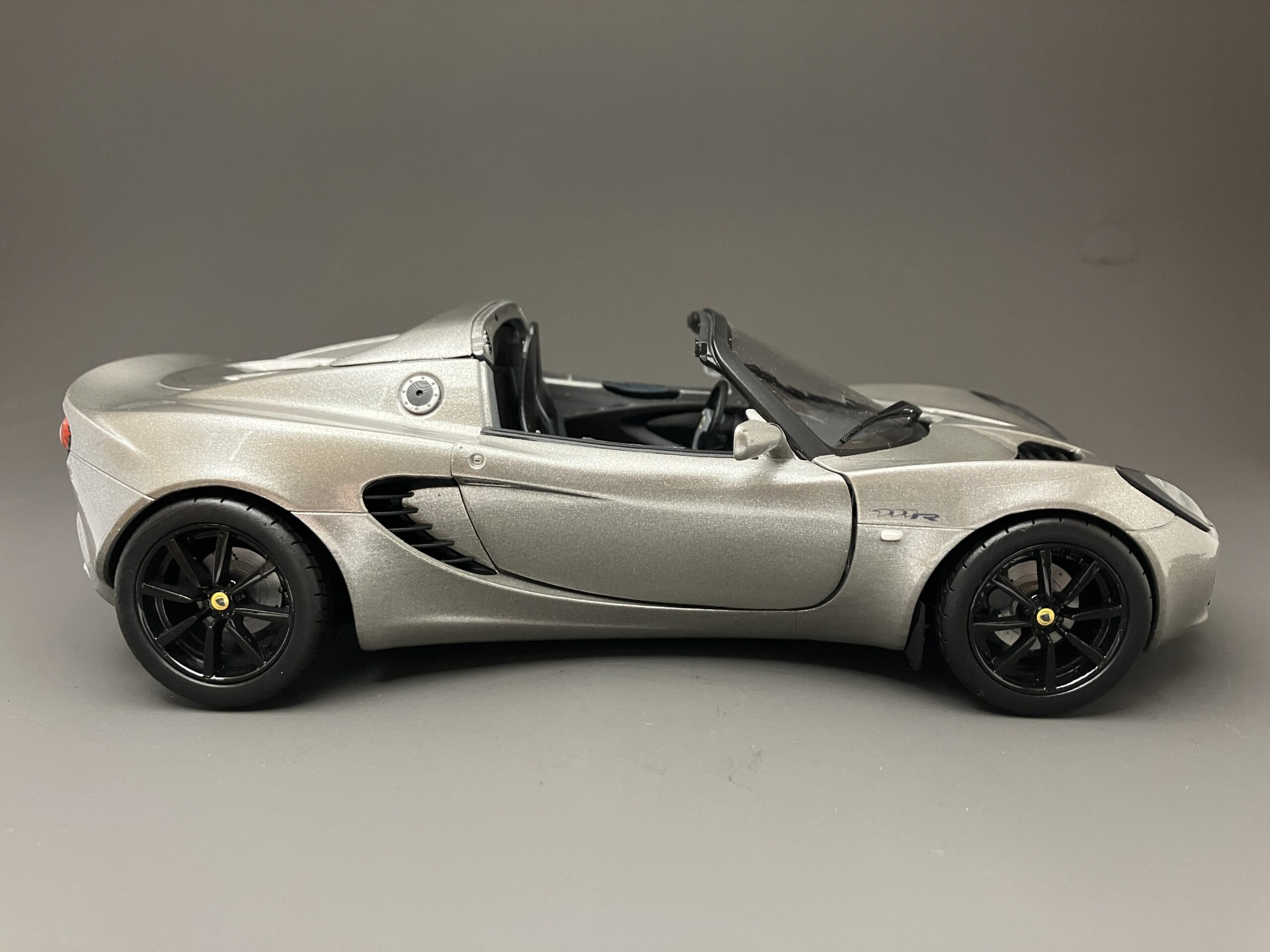

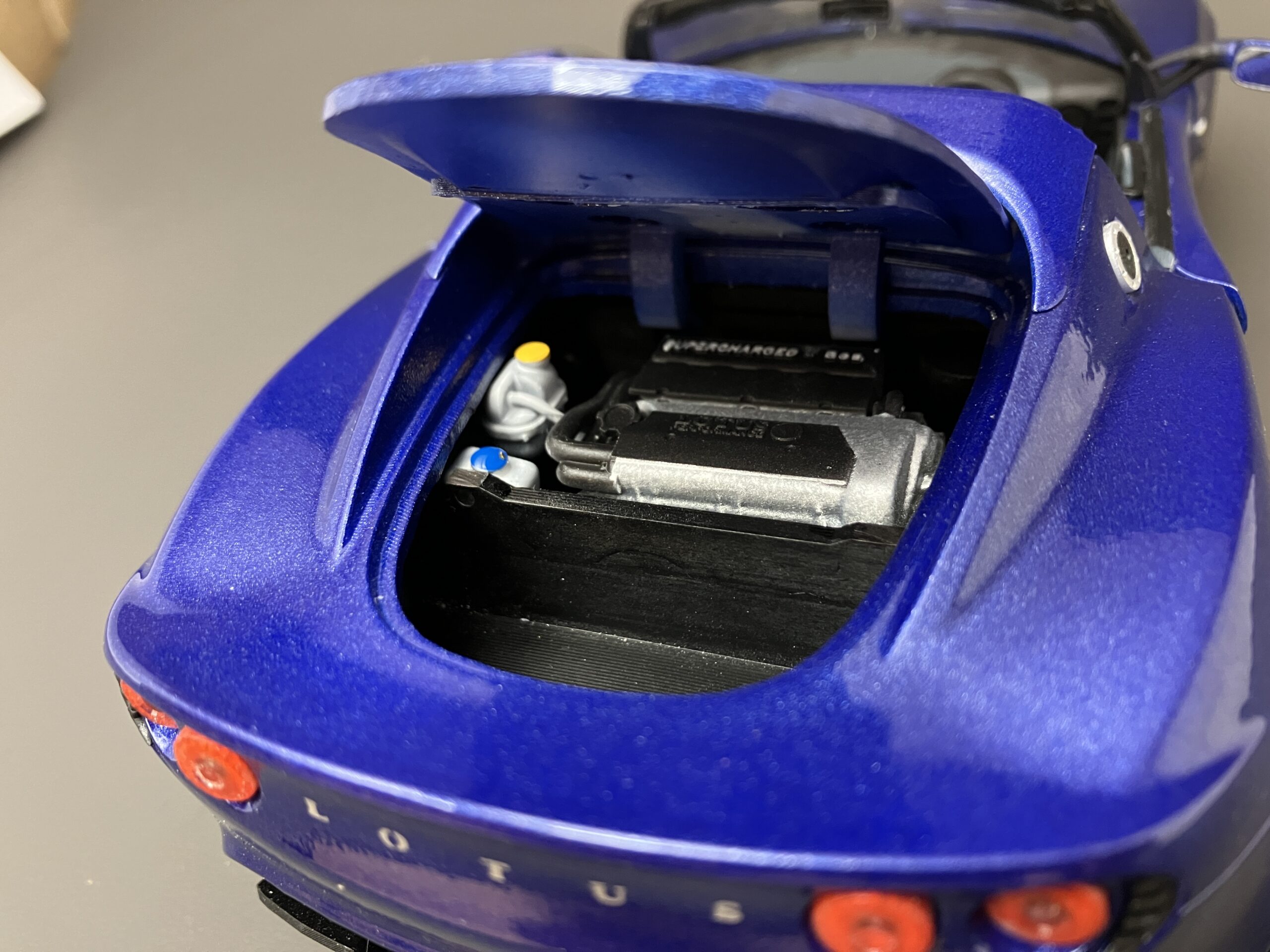

Make no mistake, it takes months of work to prepare a printable file and printing itself isn’t the nicest of jobs requiring safety precautions and all. But there they are, my first rough 1:18 replica’s, yet to be altered on lots of details, tolerances and fitments and surface finish. But a good first try nonetheless, now developping from here!

Note, i am not / have not taken orders, nor do i provide files. It is a personal project atm. Just enjoy the process for the time being!

Work in progress:

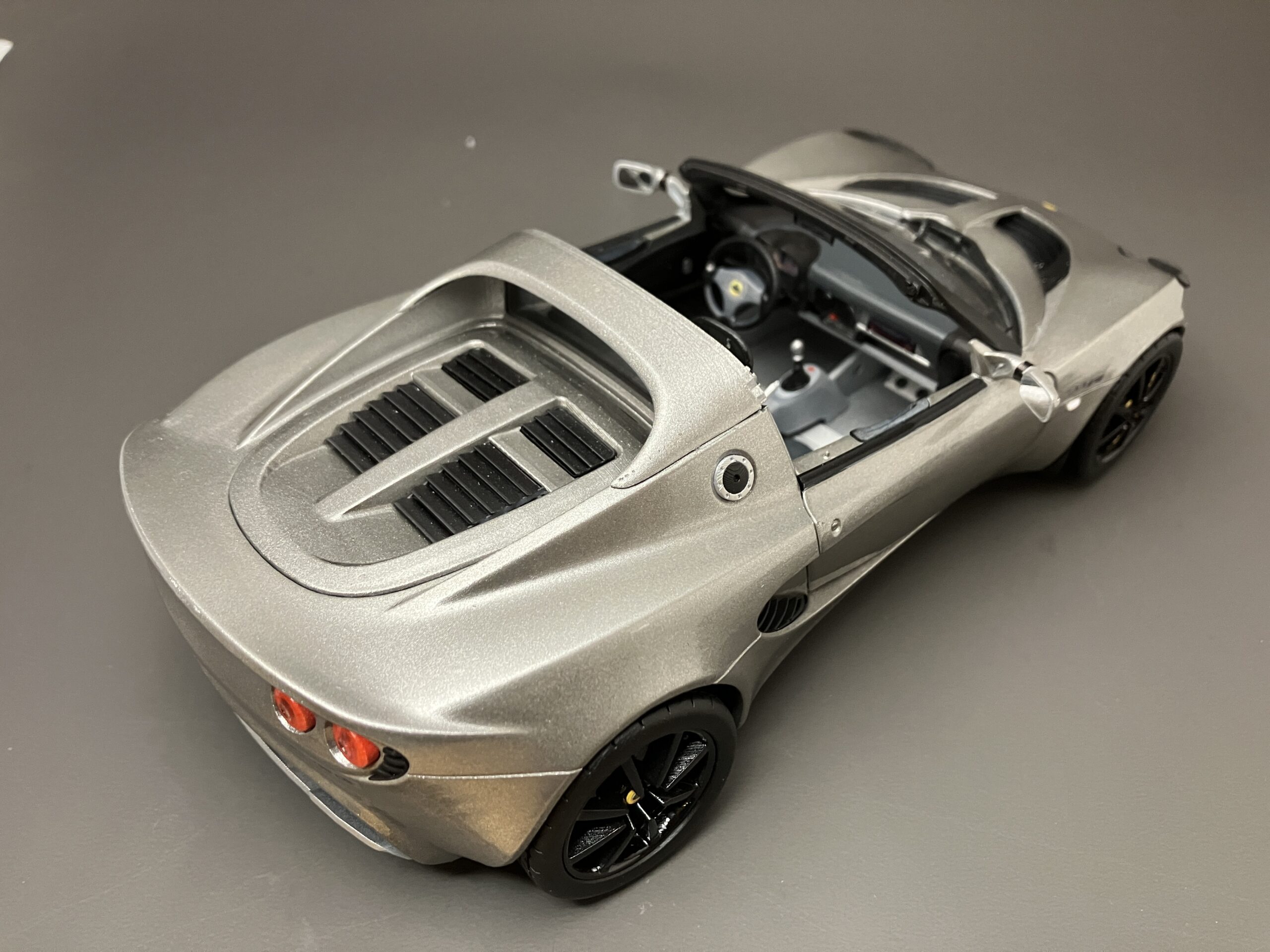

Elise 111r 2005 – Storm Titanium B121 – LHD

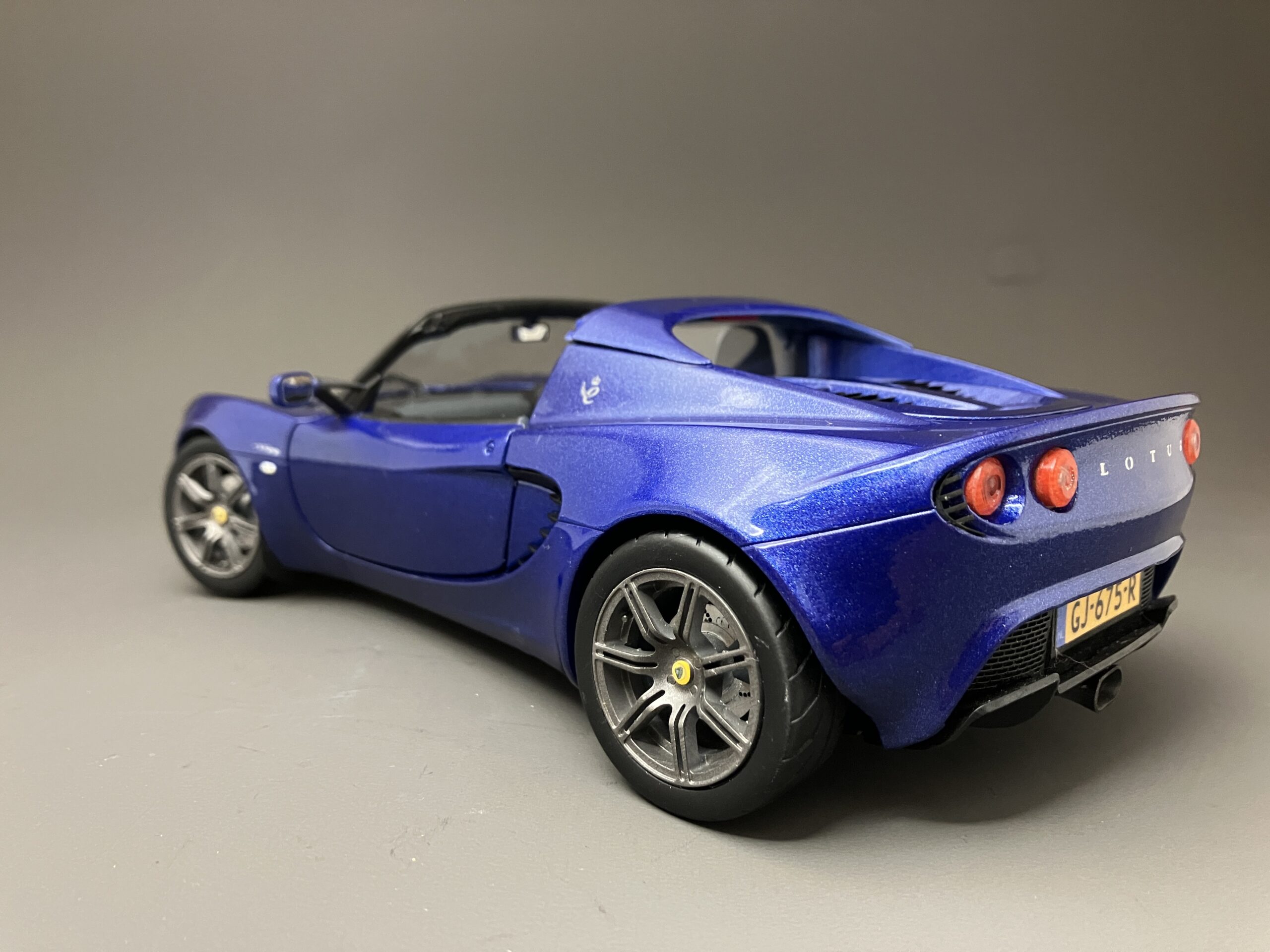

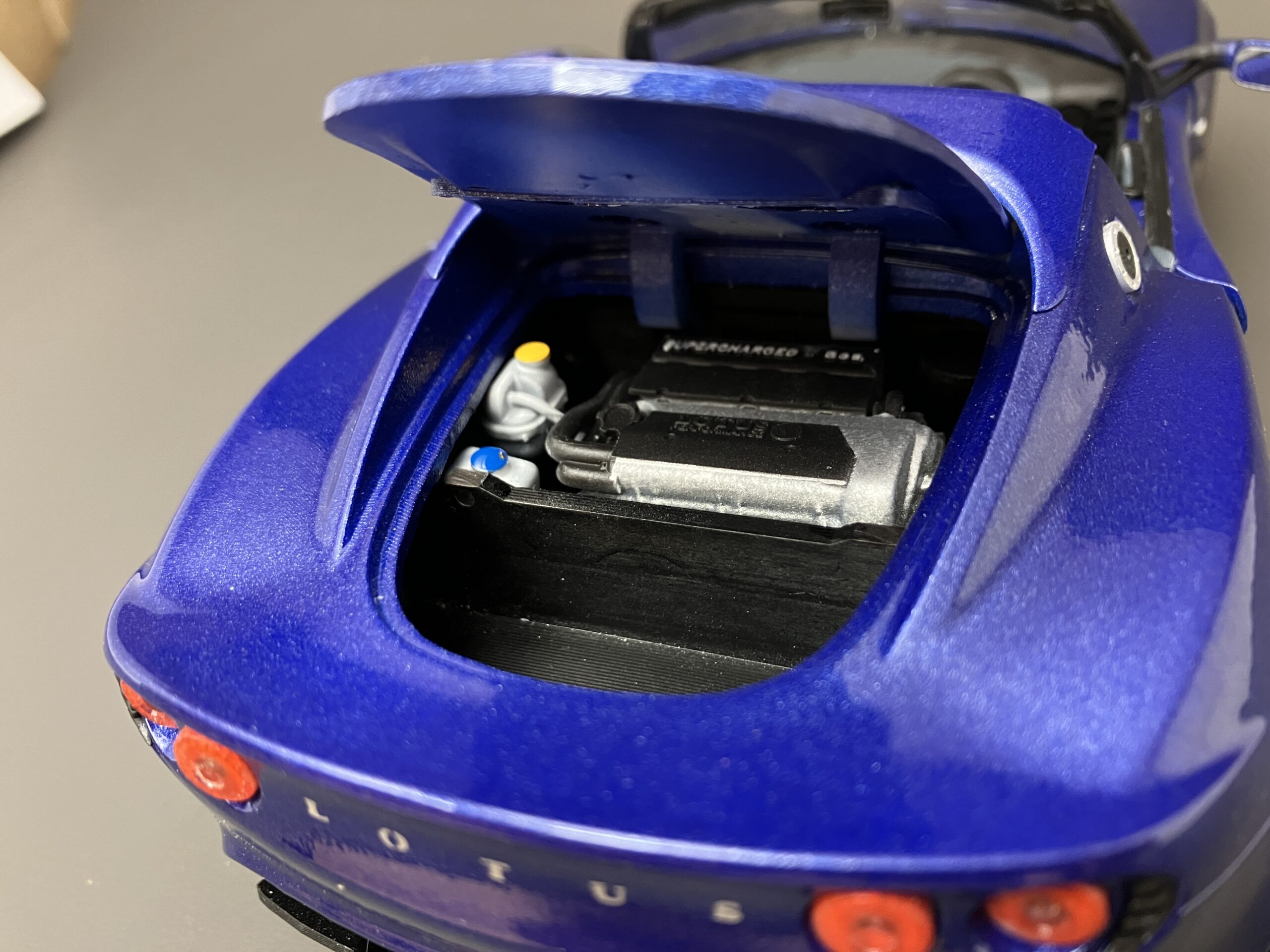

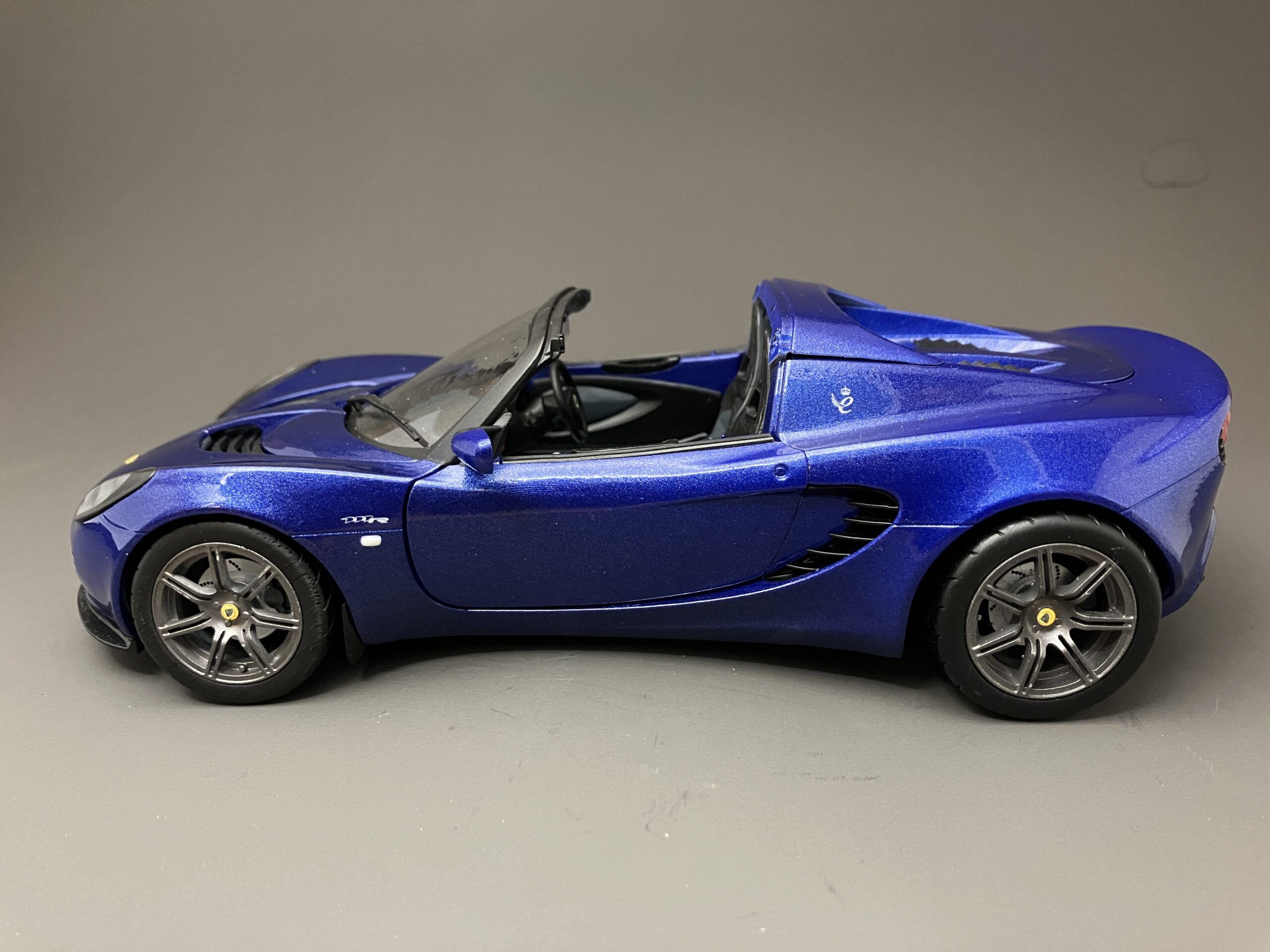

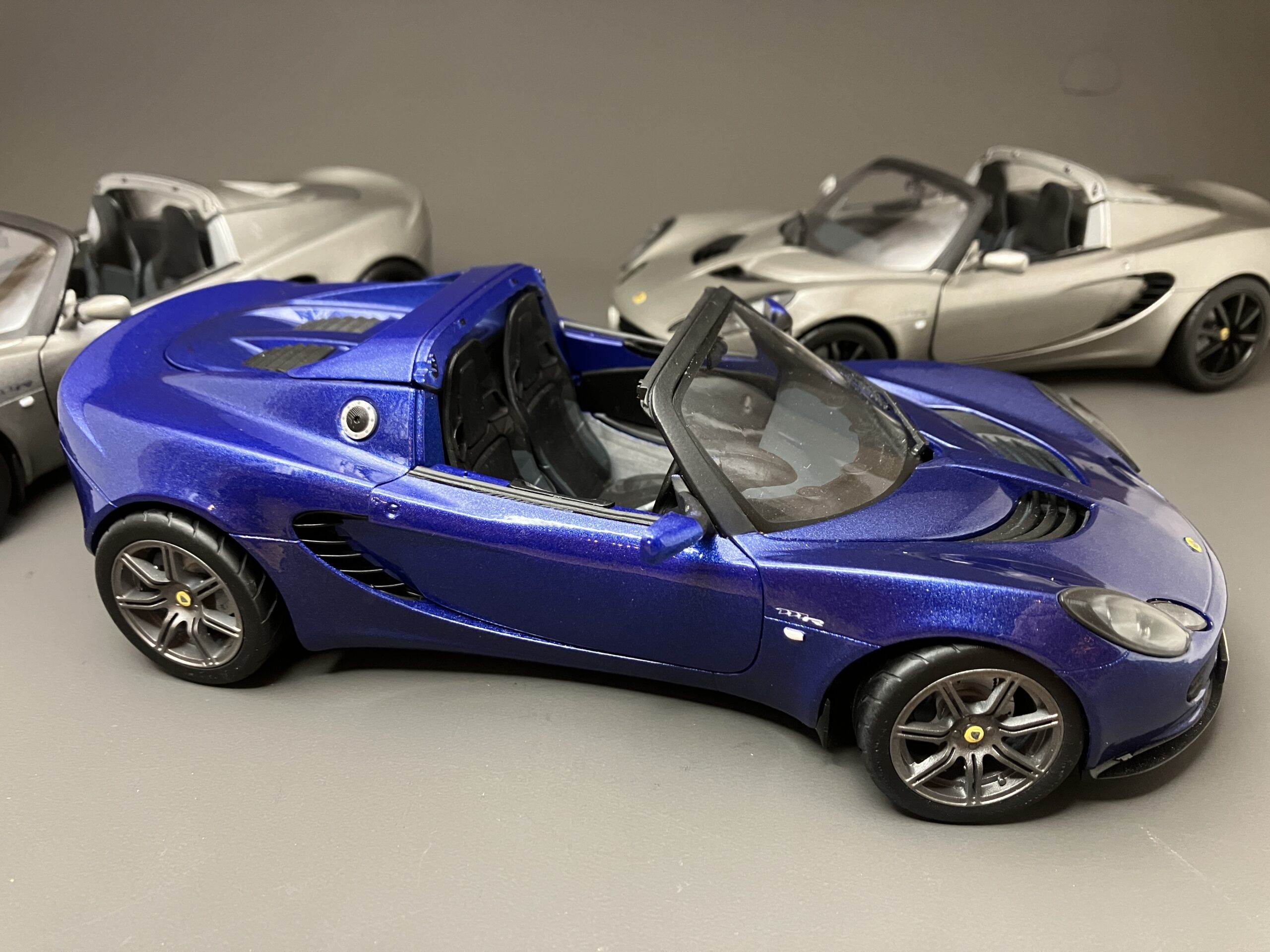

Elise 111r 2005 – Magnetic blue B100 – RHD
Elise 111r 2004 – Magnetic blue B100 – RHD

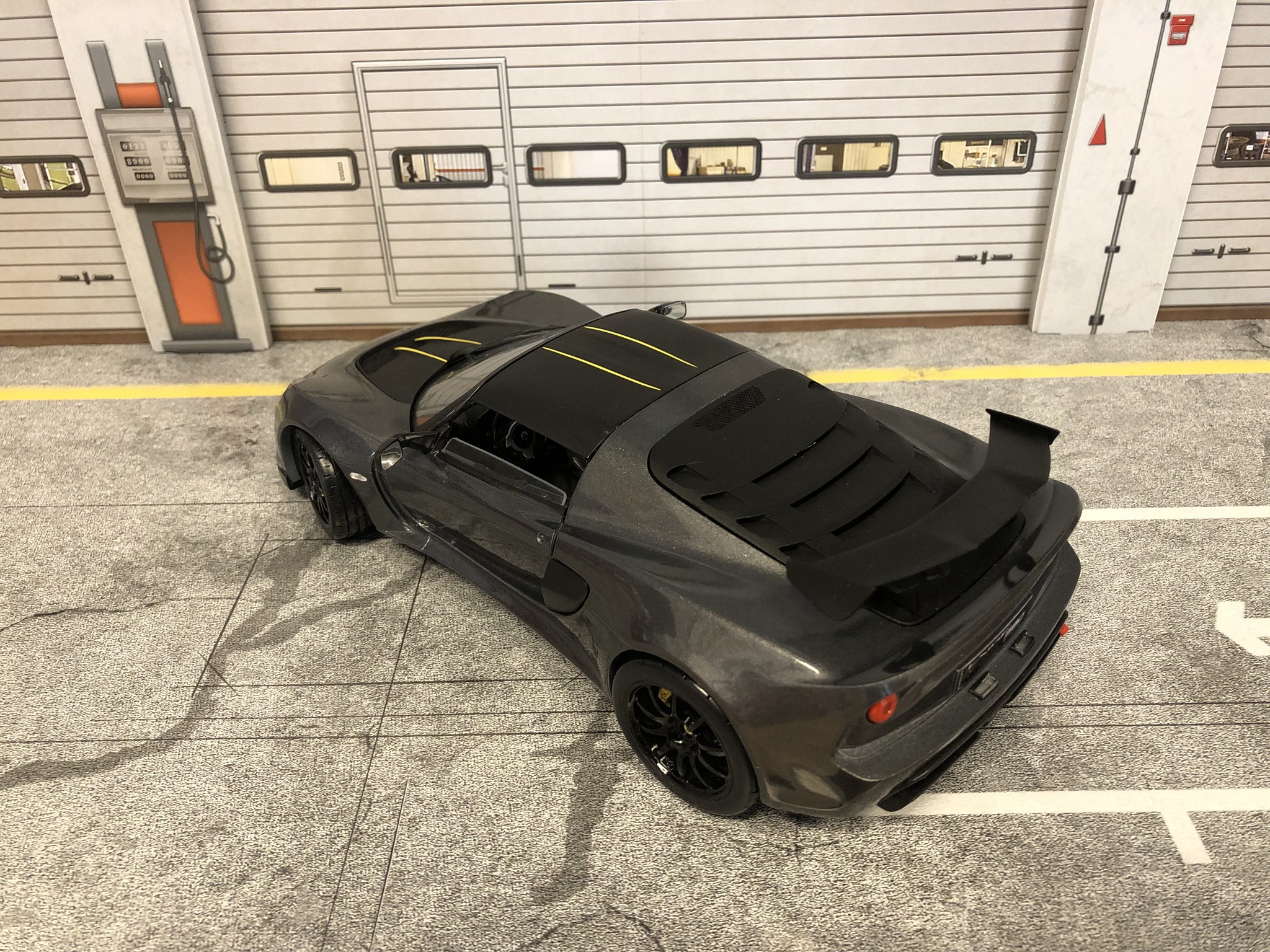

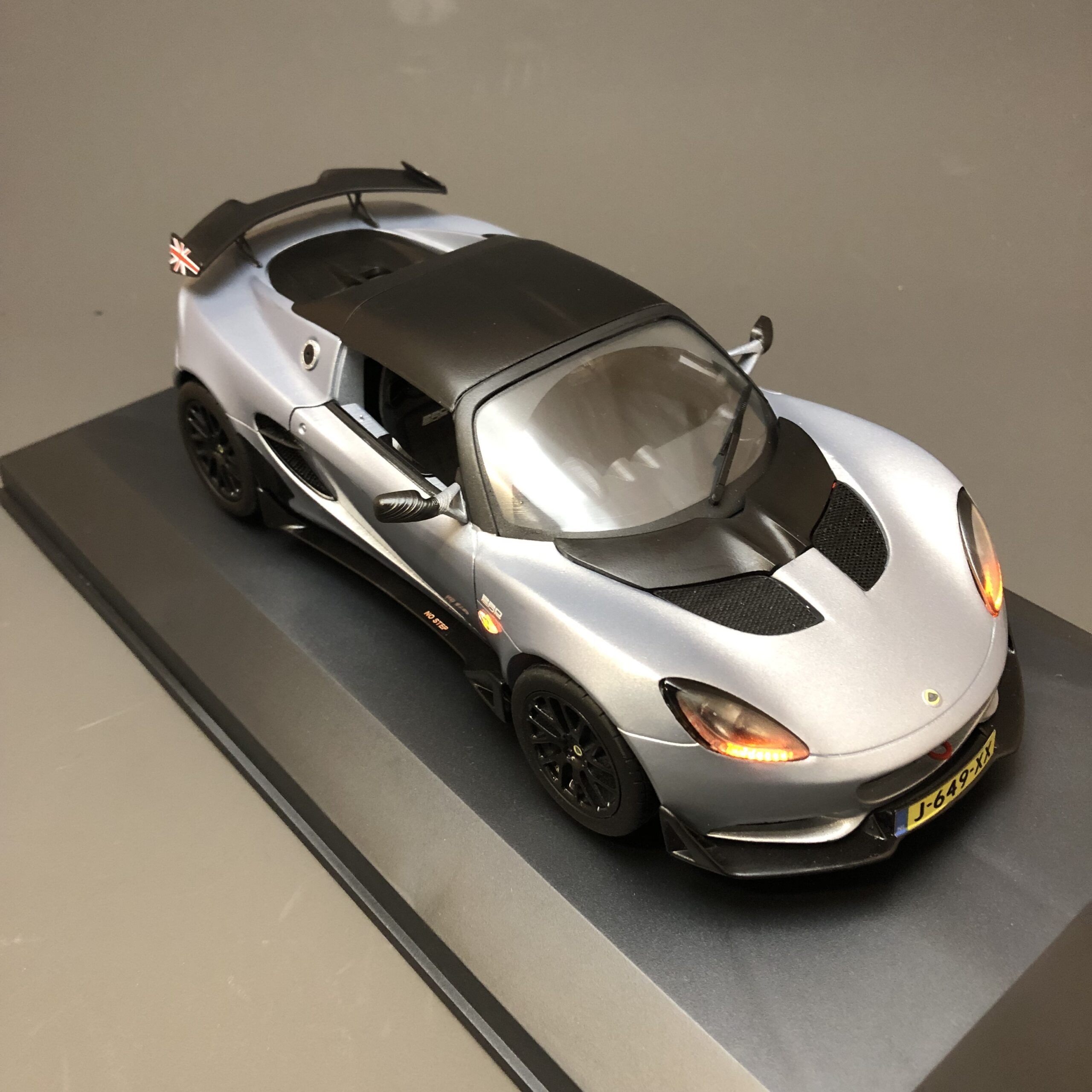

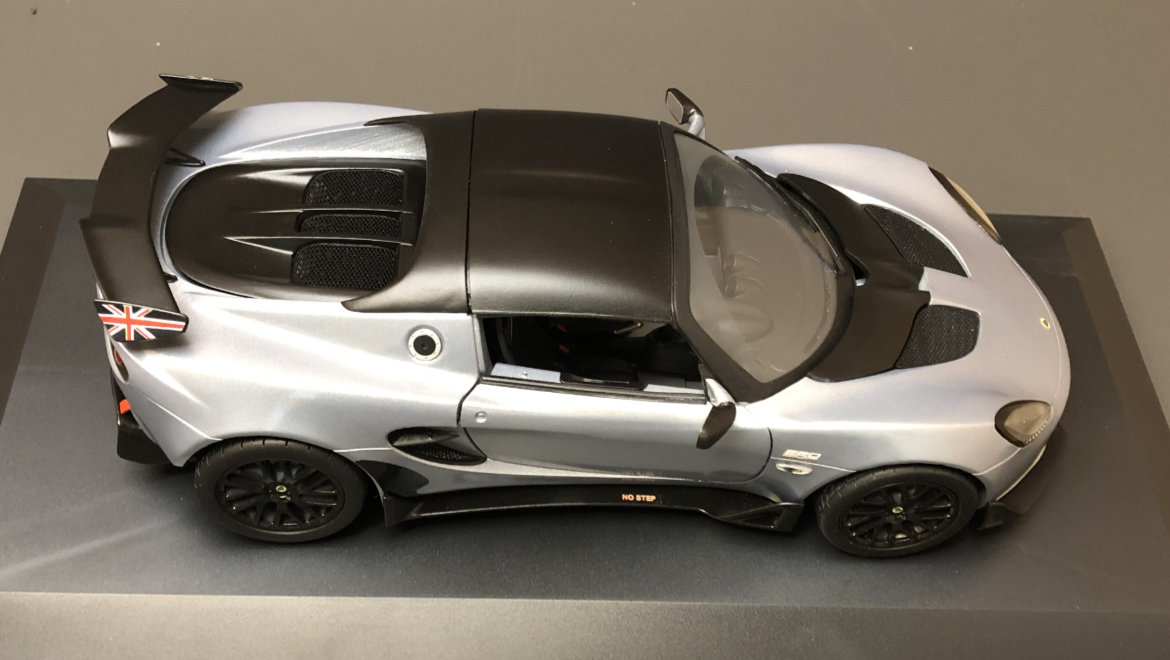

Elise 220 Cup 2016 – Arctic Silver B130 – RHD
Elise 111r 2004+ – Arctic Silver B130 or enquire – LHD/RHD

Follow my progress on this build on instagram or facebook.

Elise s3/interior

Update: fix the silent indicator on black dash Elises or Exiges

No more unintentional driving with the indicators on! Read more..

mechanics

Postponed winter works during corona lock down

Update: new brake booster and waterpump fitted:

events

Events: Lotus on Track Zandvoort 9-9-19

Full album:

part 1: https://photos.app.goo.gl/yoPKdnHSiCebPpwa8

part 2: https://photos.app.goo.gl/QYm6VRresAimYy497

heating and ventilation HVAC/airconditioning/heating

Work in progress – finishing the new A/C system

All refrigerant lines are plumbed in and vacuum tested.

Work in progress – refreshing the hvac bay

While working my way into the hvac bay in order to rebuild the A/C system i couldn’t resist taking out the wiper mechanism. This also requires to remove the air distribution box.

The wiper mechanism will be replated and passivated, where it’s baseplate has been media blasted and will be resprayed.

The refreshed fan assembly, zinc plated interface, stainless locknuts, fipg gasket

Work in progress: A/C aircon retrofit

.. well not entirely. It had it fitted as factory option but i took it out during the first major refresh. Currently i am sourcing new parts to re-install the hvac system to the latest standard, with a new hvac assembly box, electronic thermostat, new sill pipes (as the factory ones corrode by a design flaw).

1:24 scale model Lotus Elise 111r

I recreated the color scheme of my 111r on a yellow Welly 1:24 Lotus Elise 111s scale model.

The model was fully disassembled in order to paint it properly. Using paint from a touch up bottle and a compressor fed spray gun the paint was applied. First the 2-k primer, metallics as base coat and House of Kolor clear coat.

The antracite stripe is the first color layer which is then masked and sprayed over with the artic silver base coat.

Primer:

blog

About Eliseworks.com

This blog is not affiliated to lotuscars.com in any way, and serves as a personal playground to share knowledge about the art of Lotus Elise 111r maintenance, and build a community along the way. I spent a lot of time writing updates on tech forums and i decided to gather that info in a catalogued fashion for easy access. It is nowhere near complete yet, nor do i pretend to know everything there is to know. But for some who want to tinker on their own Lotus Elise or Exige it may offer a start, just as i googled everything i needed to know before attacking my Elise works. Enjoy!

image: lotuscars.com

blog

Lotus helmet design

Working on a helmet design in Lotus colors. Base is an OMP grandprix 7s helmet. Materials used: house of kolor paints, silhouette vinyl cutter and a compressor fed spray gun.
